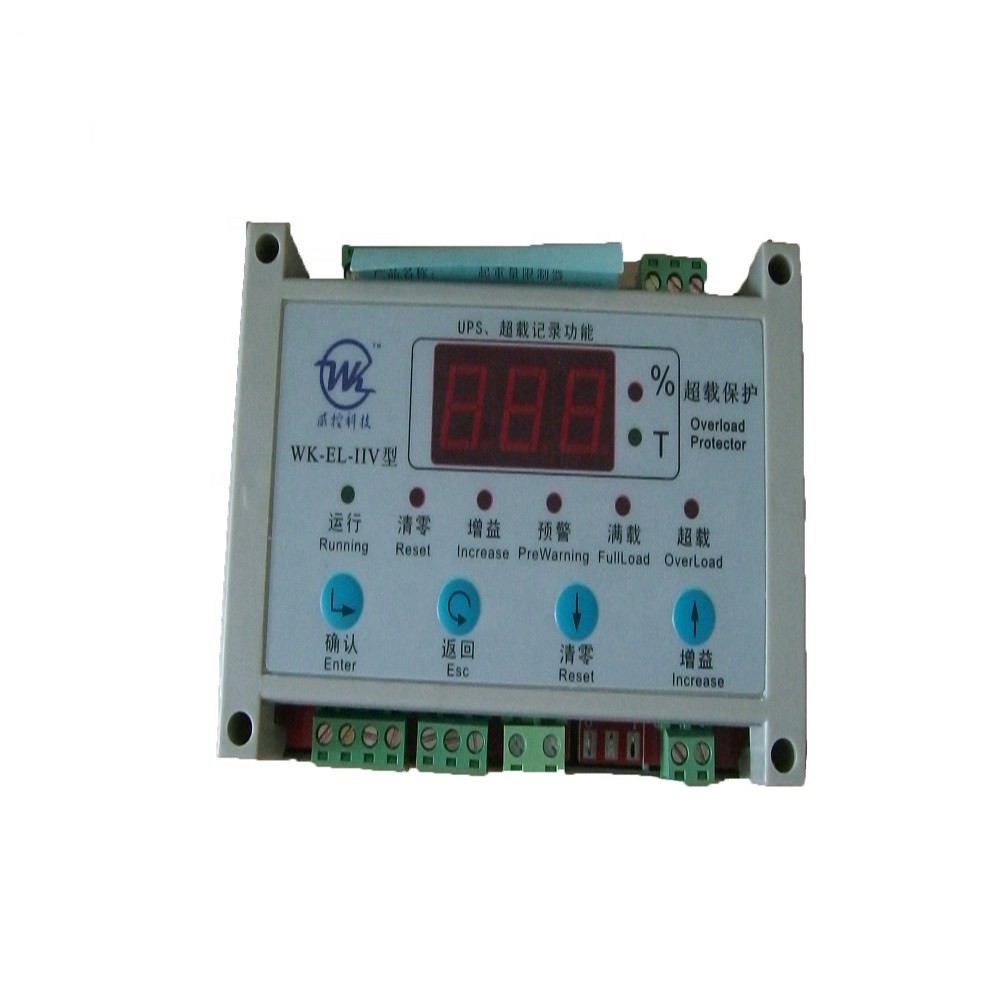

Overload

Technical Parameter

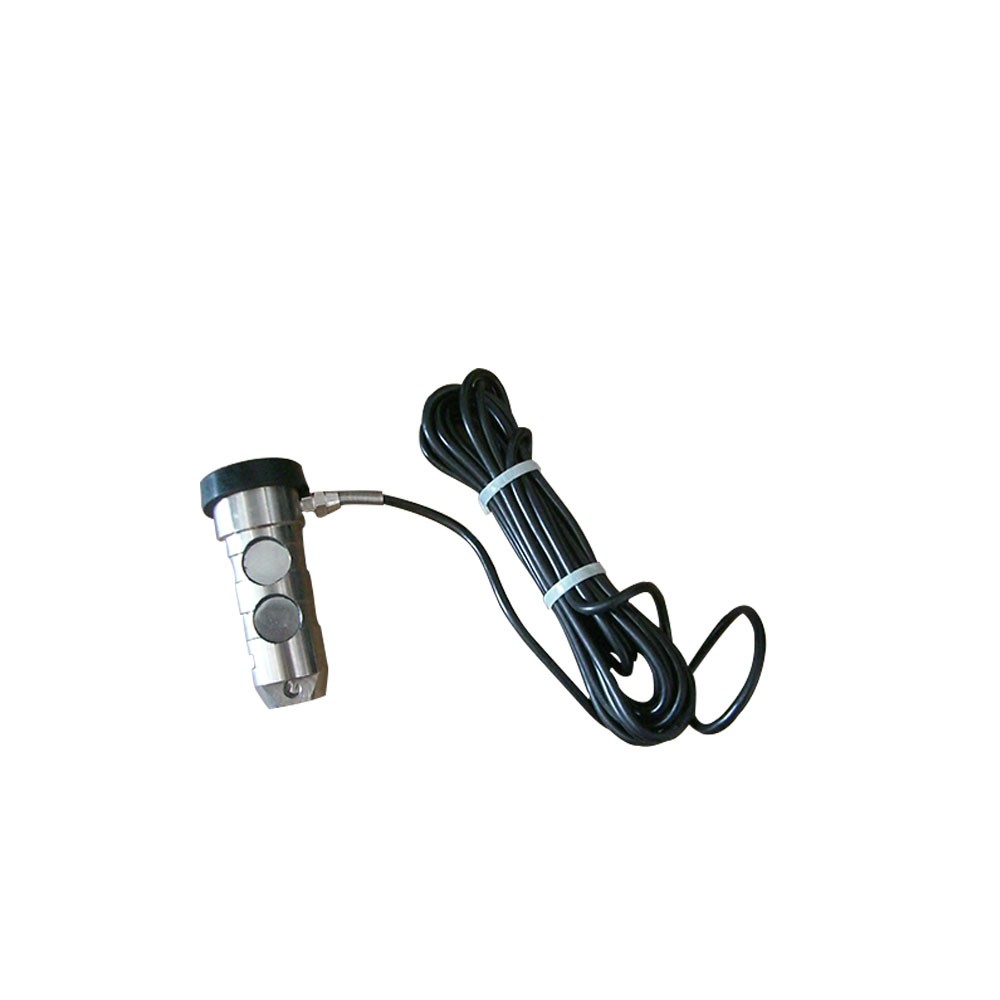

mobile crane load moment indicator		C2
Max. Capacity(Emax)		0.75,1,1.5,2,3,4,5t
Minimum LC verification interval		Emax/5000 g
Maximum number of load cell verification intervals		2000
Rated output		1.0±0.01/0.7±0.01(5t)
Temperature effect on zero balance		±0.02%FS/10°C
Temperature effect on sensitivity	20~40°C	±0.02%FS/10°C
	-10~20°C	±0.02%FS/10°C
Combined error		±0.500%FS
Creep(in 30 min)		±0.300%FS
Zero balance		1%FS
Input resistance(RLC)		750±10Ω
Output resistance(RO)		703±2Ω
Insulation resistance(Ris) at 100 VDC		≥5000 MΩ
Service temperature range		-10~+70°C
Storage temperature range		-20~+70°C
Reference excitation voltage		10~15 V
Safe load limit(EL)		150%FS
Breaking load(Ed)		200%FS
Material		Alloy steel
Protection class		IP67
Cable		Length:4m Diameter:φ5mm
